Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                            twin screw barrel extruder 134mm hole diameter, extruder screw barrel 110mm center distance, high precision twin screw barrel extruder


Bahan:	PPS, 38CrMoal 45#	Berat:	32 kg
Ukuran:	410370300 mm	Diameter lubang:	134mm
Jarak tengah:	110mm	Model 20 dimensi:	132115105 mm
Model 20 diameter:	Φ 23 mm	Model 20 Jarak Tengah:	18,4 mm
Model 30 dimensi:	120135115 mm	Model 30 diameter:	Φ 30,6 mm
Model 30 Jarak tengah:	26 mm	Model 35 dimensi:	140140120 mm
Model 35 diameter:	Φ 36 mm	Model 35 Jarak Tengah:	30 mm
Model 36 dimensi:	150160140 mm

Bahan:	PPS, 38CrMoal 45#
Berat:	32 kg
Ukuran:	410370300 mm
Diameter lubang:	134mm
Jarak tengah:	110mm
Model 20 dimensi:	132115105 mm
Model 20 diameter:	Φ 23 mm
Model 20 Jarak Tengah:	18,4 mm
Model 30 dimensi:	120135115 mm
Model 30 diameter:	Φ 30,6 mm
Model 30 Jarak tengah:	26 mm
Model 35 dimensi:	140140120 mm
Model 35 diameter:	Φ 36 mm
Model 35 Jarak Tengah:	30 mm
Model 36 dimensi:	150160140 mm

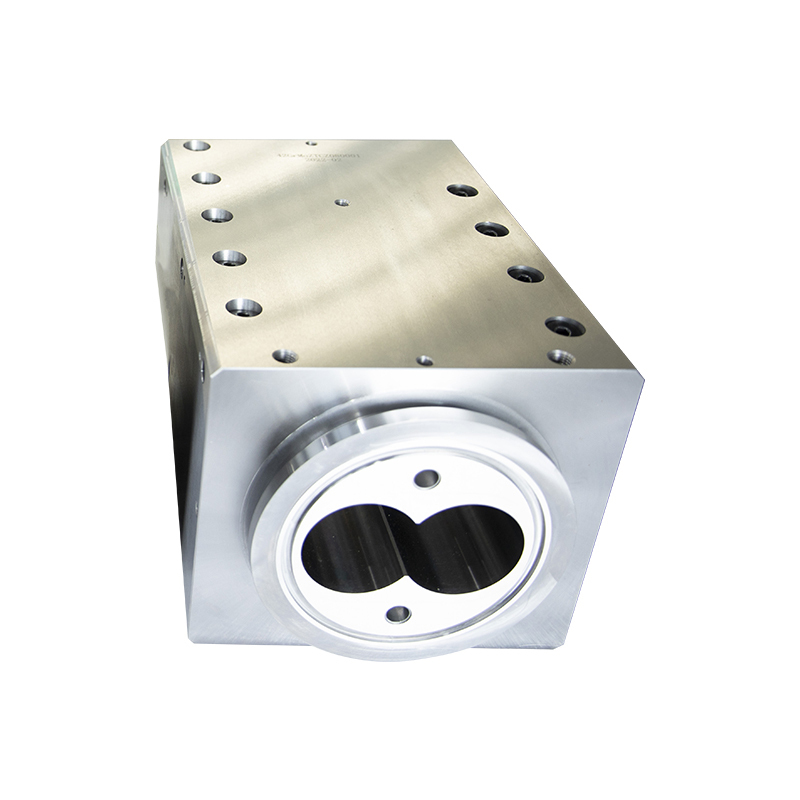

High Precision Twin Screw Barrel 134mm Hole Diameter 110mm Center Distance

High Precision Extruder Barrel for Engineering Plastics

Standard Barrel

Batch production with sufficient inventory available.

Non-Standard Barrel

Our professional technical team provides custom solutions including surveying, 3D rendering, and tailored product manufacturing.

Technical Specifications

No.	Model	LWH(mm)	Diameter Φ(mm)	Center Distance D(mm)
1	20	132115105	Φ 23	18.4
2	30	120135115	Φ 30.6	26
3	35	140140120	Φ 36	30
4	36	150160140	Φ 36	30
5	40	160175145	Φ 41.6	34.5
6	50	190190150	Φ 51	42
7	52	210200155	Φ 52	43
8	53	220210160	Φ 53.3	48
9	58	240220175	Φ 58	48
10	60	240210170	Φ 60	52
11	65	240210170	Φ 63	52
12	75	290260200	Φ 71.8	60
13	85	320280215	Φ 81.9	67.8
14	92	360310240	Φ 92	78
15	95	360310240	Φ 94	78
16	110	420330240	Φ 109	91.5
17	125	500390290	Φ 125	98
18	135	520440340	Φ 134	110
